set of two distribution boxes

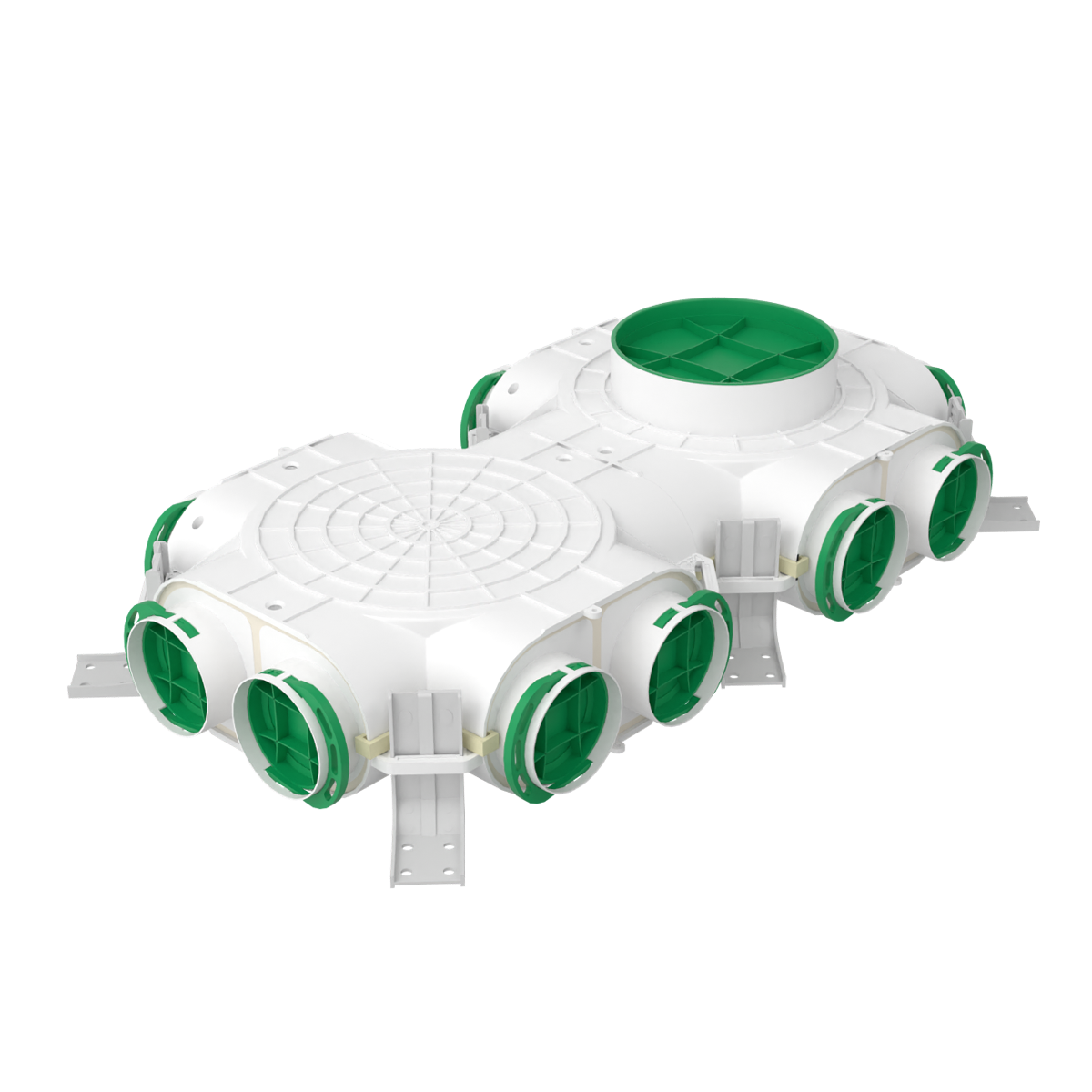

Angular Single-Row Distribution Box VCB200-12/75 – AWENTA PRO

The VCB200-12/75 AWENTA PRO distribution box is an advanced solution designed to connect up to 12 ventilation ducts with a diameter of 75 mm.

Thanks to its universal design, it is ideal for ventilation systems, especially in installations with limited ceiling space.

Applications of the side-connection distribution box:

  • Mechanical ventilation systems in residential buildings

  • Heat recovery installations in public utility buildings

  • Airflow distribution in air conditioning systems

  • Installation in spaces with limited height (e.g., above suspended ceilings)

  • Ventilation systems requiring branching into multiple ducts

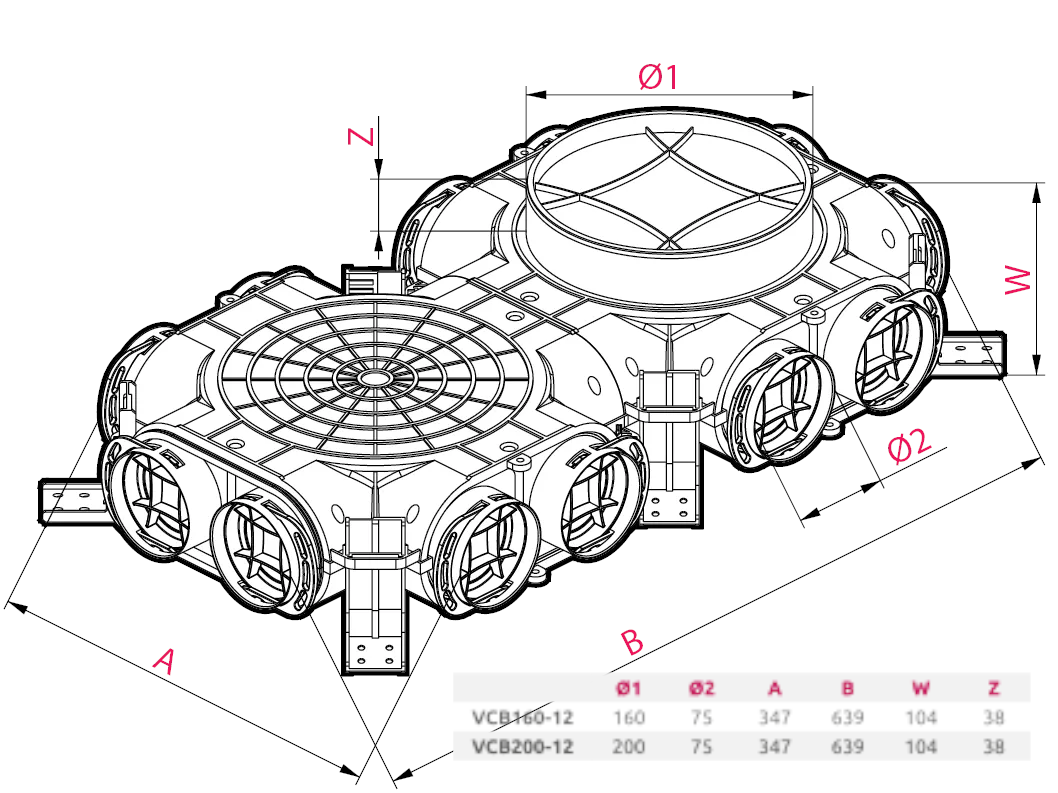

Basic Specifications:

  • Main connection: Ø200 mm

  • Number of outlets: 12 × 75 mm

  • Dimensions: 347 × 639 × 104 mm

  • Material: Polypropylene with NanoSilver additive

  • Airtightness class: D

  • Set includes: Installation gaskets
