2x Distribution Box VCB160-8 – AWENTA PRO

£185.00£178.00

Chat on WhatsApp

set of two distribution boxes

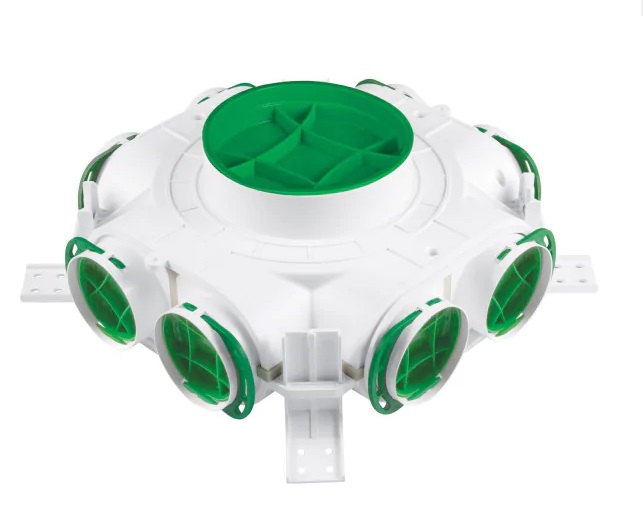

Angular Single-Row Distribution Box VCB160-8 – AWENTA PRO

The VCB160-8 AWENTA PRO distribution box is an advanced solution designed to connect up to 8 ventilation ducts with a diameter of 75 mm.

Thanks to its universal design, it is ideal for ventilation systems, especially in installations with limited ceiling space.

Applications of the side-connection distribution box:

  • Mechanical ventilation systems in residential buildings

  • Heat recovery installations in public utility buildings

  • Airflow distribution in air conditioning systems

  • Installation in spaces with limited height (e.g., above suspended ceilings)

  • Ventilation systems requiring branching into multiple ducts

Basic Specifications:

  • Main connection: Ø160 mm

  • Number of outlets: 8 × 75 mm

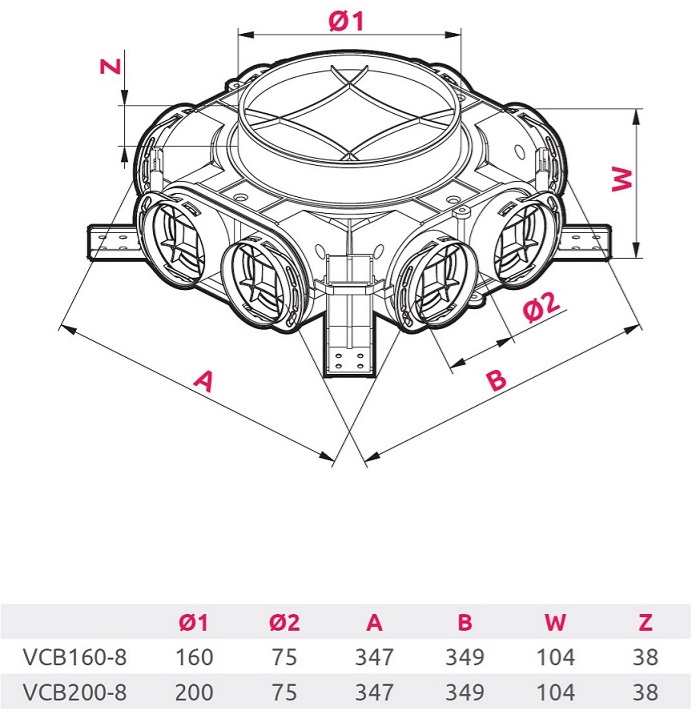

  • Dimensions: 347 × 349 × 104 mm

  • Material: Polypropylene with NanoSilver additive

  • Airtightness class: D

  • Set includes: Installation gaskets
